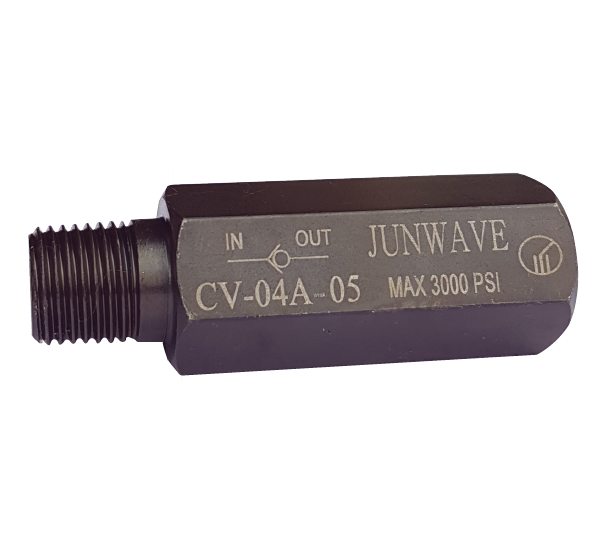

CV-A
In-Line Check Valves
Male and female threads
| Model No. | Thread connection A |
B mm |
C mm |
D mm |
Working Pressure | Cracking Pressure | Flow (l/min) |
Weight kg |
| CV-03A | 3/8〞 PT | 58.5 | 74 | 23 | 210 kg/cm² (3000 PSI) |
05: 0.5 kg/cm² 50: 5.0 kg/cm² |
40 | 0.14 |
|---|---|---|---|---|---|---|---|---|
| CV-04A | 1/2〞 PT | 63 | 80 | 29 | 60 | 0.26 |
