LS
Fluid Level Gauges
Please note the distance between two screws when boring the two holes on the oil tank.
The recommended torque is 8-10 Nm when tightening the fluid level gauge.

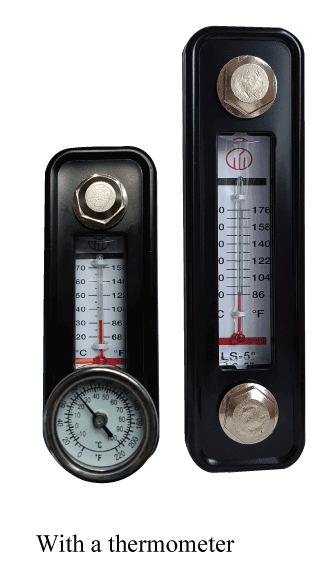

A thermometer may be added to detect the actual temperature.
Max. working temperature: 80ºC (176ºF)
Patent No. PAT108447

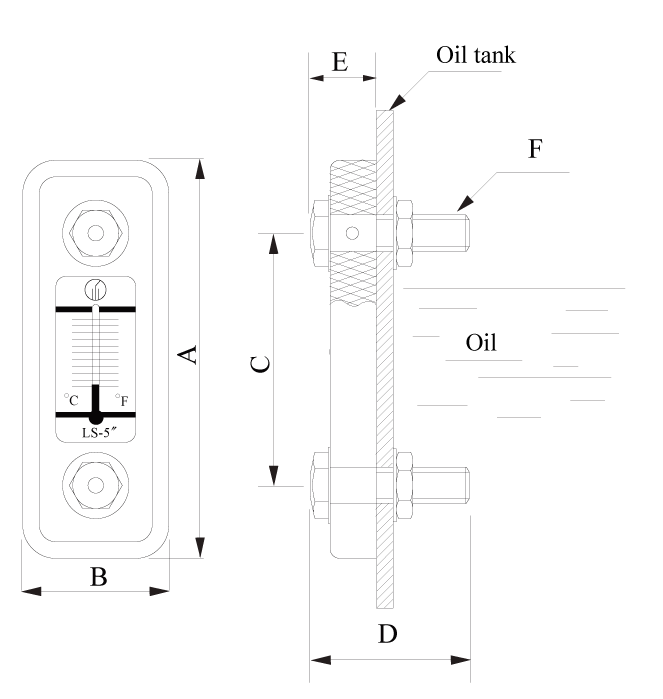

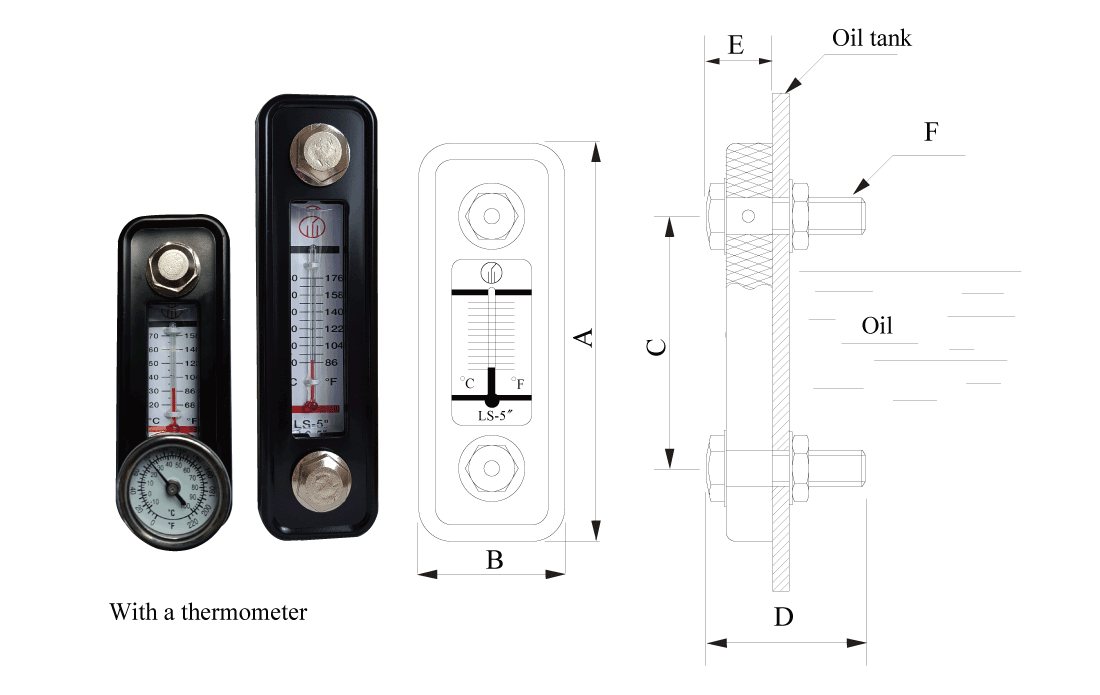

| Model No. | A mm |
B mm |
C mm |
D mm |
E mm |
F | Weight kg |
| LS-3R | 120 | 44 | 76 | 43 | 20 | M10 x 1.5 | 0.2 |
|---|---|---|---|---|---|---|---|
| LS-3RL | 120 | 44 | 79 | 43 | 20 | 0.2 | |
| LS-5R | 175 | 48 | 127 | 43.5 | 21 | M12 x 1.75 | 0.32 |
